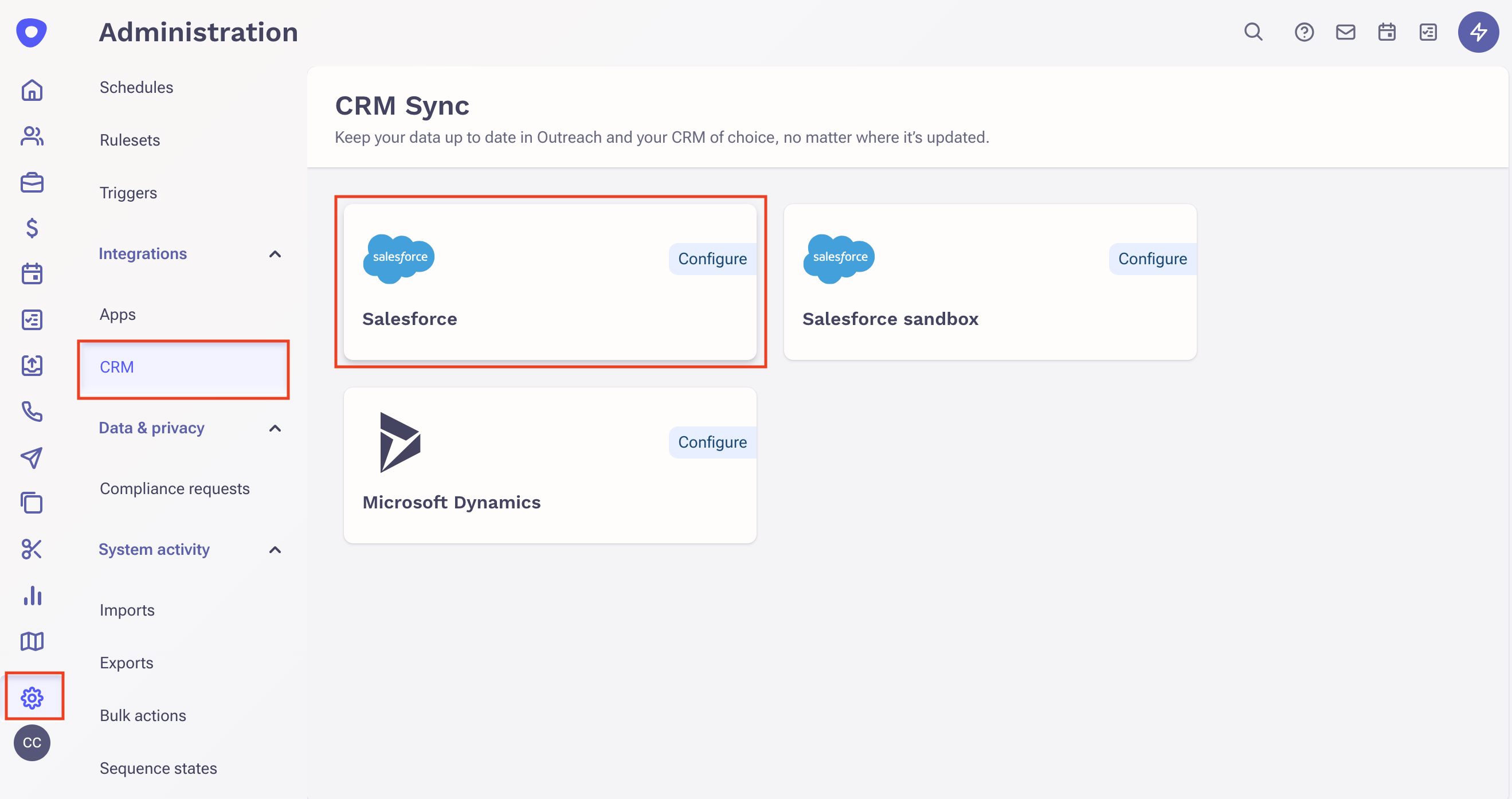

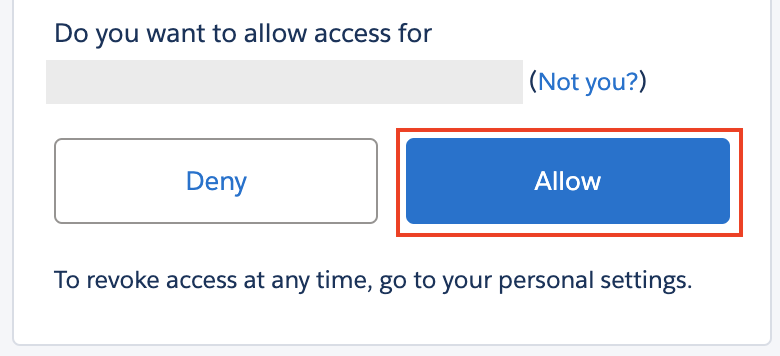

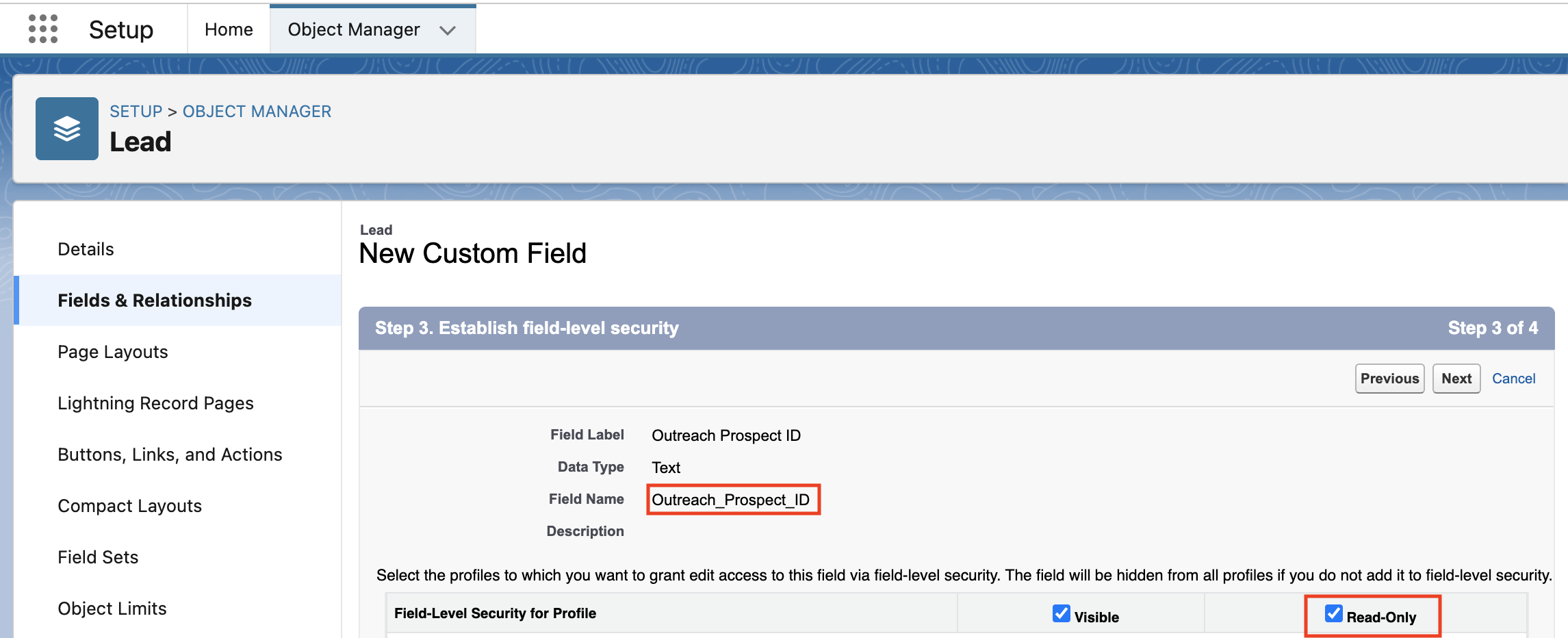

InformationTitleRouting - LeanData - Outreach Flowbuilder IntegrationURL NameRoutingLeanDataOutreachFlowbuilderIntegration69022de84a6b6Step-by-StepContents: OverviewSetting up LeanData-Outreach IntegrationPrerequisitesSteps to ImplementEnabling Outreach-Salesforce SyncAuthorizing Outreach Access in LeanDataOutreach Sequence & Mailbox SetupOutreach FlowBuilder NodesMonitoring and TroubleshootingAppendix Overview Customers who utilize both LeanData and Outreach can initiate Outreach actions within LeanData’s FlowBuilder interface. Features Add Prospect to Sequence in OutreachSelect Mailbox for automated emailsUpdate the record owner in OutreachRemove Prospect from Sequences in Outreach Setting up LeanData-Outreach Integration Prerequisites Joint Customer of LeanData and OutreachOutreach-Salesforce sync enabled (see below for directions to enable your Salesforce-Outreach sync and view this Outreach support article for user / system requirements)Salesforce field creation for Lead / Contact and User Steps to Implement Enable Outreach-Salesforce Sync Field Creation and Updates Out Authorize Outreach with LeanData (Salesforce Admin must complete this step)Set Node ConditionsAdd Node(s) to GraphReview Edge Options Enabling Outreach-Salesforce Sync The Outreach-Salesforce Sync must be enabled in order for the integration to function. The integration utilizes custom field mappings to determine the corresponding records in Outreach and Salesforce. Outreach → Salesforce: Outreach records sync to Salesforce every 60 seconds or lessSalesforce → Outreach: Salesforce records sync to Outreach at a configured time interval. Users can set the frequency to as small as 1 minute - note that this will use more API calls. The limit for Outreach API calls is 5,000 per user, per hour.Outreach Sync Settings are described in full in the Outreach & CRM Connection Overview. Enabling Outreach Salesforce Sync Log into the Salesforce instance that you’d like to connect with Outreach In Outreach, click on the gear icon near the bottom left corner. In the menu, under Integrations, click CRM.Select Salesforce. In the Salesforce Access modal that pops up, click Allow. Lead Sync Settings: In Salesforce, create a text field on the Lead with 255 characters. Give it a unique label, such as “Outreach Prospect ID.” Mark the field as read-only on the Page Layout. In Outreach, in your Salesforce integration page, click Lead.In the Set field mapping section, click Add Mapping. In your new field mapping, on the left side, under Select Salesforce field, select the Salesforce field you created in the step above (i.e. "Outreach Prospect Id"). Select the Update box next to the Salesforce field.On the right side, under Select Outreach field, select ID (Outreach Internal) In the Set Sync Frequency section, under Pushing, check the box to Automatically push changes to Salesforce. You may configure the remaining settings however you wish, but LeanData recommends the following Sync Settings: Polling: Automatically, check for updates every 5 minutes.Set Object Syncing: Outbound Create - OFFOutbound Update - ONInbound Create - ONInbound Update - ON Advanced Settings Tab: Sync data down after manual create inside Outreach - OFFInbound Messages - OFFOutbound messages sent outside Outreach - OFFOutbound Messages sent within Outreach - OFF Contact Sync Settings: In Salesforce, create a text field on the Contact with 255 characters. Give it a unique label, such as “Outreach Prospect ID.” Mark the field as read-only on the Page Layout. In Outreach, in your Salesforce integration page, click Contact.In the Set field mapping section, click Add Mapping. In your new field mapping, on the left side, under Select Salesforce field, select the Salesforce field you created in the step above (i.e. "Outreach Prospect Id"). Select the Update box next to the Salesforce field.On the right side, under Select Outreach field, select ID (Outreach Internal)In the Set Sync Frequency section, under Pushing, check the box to Automatically push changes to Salesforce. You may configure the remaining settings however you wish, but LeanData recommends the following Sync Settings: Polling: Automatically, check for updates every 5 minutes.Set Object Syncing: Outbound Create - OFFOutbound Update - ONInbound Create - ONInbound Update - ON Advanced Settings Tab: Sync data down after manual create inside Outreach - OFFSet stage on related opportunity - OFFInbound Messages - OFFOutbound messages sent outside Outreach - OFFOutbound Messages sent within Outreach - OFF User Sync Settings: In Salesforce, create a text field on the User object with 255 characters. Give it a unique label, such as “Outreach User ID.” Mark the field as read-only on the Page Layout. In Outreach, in your Salesforce integration page, click User.In the Set field mapping section, click Add Mapping. In your new field mapping, on the left side, under Select Salesforce field, select the Salesforce field you created in the step above (i.e. "Outreach User Id"). Select the Update box next to the Salesforce field.On the right side, under Select Outreach field, select ID (Outreach Internal)In the Set Sync Frequency section, under Pushing, check the box to Automatically push changes to Salesforce. You may configure the remaining settings however you wish, but LeanData recommends the following Sync Settings: Polling: Automatically, check for updates every 24 hours.Set Object Syncing: Outbound Create - OFFOutbound Update - ONInbound Create - ONInbound Update - ON Advanced Settings Tab: Sync data down after manual create inside Outreach - OFFCreate associated contacts, leads and accounts when syncing into Outreach - OFF User Sync Notes: Syncing: Upon installation and first time mapping, Outreach may need a force a sync to update the User Outreach IDs. To force a sync, click the gear icon in the lower left, then under Users & permissions, select Users. Select all the users, then click the three dots at the top of the list, then click Synchronize with Salesforce. In the options that follow, select Push data up to CRM, and Force sync of all fields for selected users. Then click Sync. Note: For Sync Settings, Inbound Create and Update are required if you want changes in Salesforce to sync back to Outreach, including creations and updates. Errors for Salesforce-Outreach Sync: If the owner of a Salesforce record is not in Outreach, the Prospect record cannot be created. Turn on Inbound Create on Users to auto create Locked Users in Outreach. Outreach does not create a new Prospect record if one already exists with the same email address.Outreach requires an email address on the Lead / Contact record if there is an email step in the Sequence. Authorizing Outreach Access in LeanData In order to enable this integration, the Salesforce Admin must authorize LeanData’s access to your Outreach instance. Please navigate to LeanData > Integrations > Outreach Tile > Get Started. Once on the Outreach Integration page, enter your field mappings for the fields you created on the Lead, Contact, and User objects for Outreach IDs. The Lead, Contact, and User field mapping is required. Account field is optional. If you are not using any of the objects for Routing, please create a placeholder field for the object for mapping purposes.If the mapping is incorrectly configured (e.g. the wrong Lead field is mapped to an Outreach field), LeanData will mark it as an error and revert back any actions in the path for the record. Click Authorize Outreach. Note: You must have a LeanData Remote Site created, and the User authorizing the tool with LeanData must have the ability to edit Remote Site Settings. Please ensure this user has Modify All Data or Customize Application permissions.Authorize LeanData to create a remote site for your Outreach integration and click Continue. If prompted, log into your Outreach instance. Outreach Sequence & Mailbox Setup To add a Prospect to a Sequence in LeanData FlowBuilder, the sharing setting for that sequence must be set to Others can see it and use it. Note: Before publicly sharing the Sequences, confirm there is no sensitive information being exposed to employees via Sequences. Mailboxes must be enabled for all users sending automated emails in Outreach. In Outreach, click your initials in the bottom left corner > Personal Settings > Mailboxes > Set up Account > Select the Email Provider. Fill out your details.Under Sending and syncing, toggle on Enable sending messages from this mailbox and Enable syncing messages from this mailbox. Outreach FlowBuilder Nodes For more information on working with the Outreach FlowBuilder Nodes, please see the following Guides: Outreach Add / Remove from Sequence NodeOutreach Create Task Node Guide Monitoring and Troubleshooting Audit Logs Outreach actions are included in LeanData Audit Logs In some cases, LeanData cannot perform the requested actions in Outreach. Audit Log Filters: You can filter your Audit logs by the Outcome of the Outreach action, specifically: Outreach - Success (Outreach), Pending (Outreach), Error (Outreach). Note that the Error (Fallback) Outcome filter will not show any Outreach Fallback errors at this time. Pending (Outreach): If LeanData cannot perform the requested action in Outreach, we will try again after the amount of time set in your Partner App settings. At that point of time, the record will be set to “Pending” in the Audit Logs. Records will remain in the “Pending” state until ultimate failure or success. Error (Outreach): After six retries, LeanData will mark the records as an error for the Outreach portion of the Path in the Audit Logs. Both Pending records and Error records will display the audit trail of each attempt to complete the action. If LeanData follows an edge (ex: Queue Owner), it will mark the node in the Path as an Error and will not show an error message in the Outcome columnIf LeanData cannot perform the requested action because of misconfigured settings (ex: incorrect field mapping on the LeanData set up for Outreach) or unexpected issues, we will revert back any changes made on the record in the path.If LeanData cannot perform the requested action because of a callout error, only the action of adding a Prospect to a Sequence will fail. LeanData Partner Logs Report Visit Reports > LeanData Reports > LeanData Partner Logs Report to view a summary of all callouts in Salesforce reports. Action Type: the type of Partner node used (“Add to Sequence” for this integration)Node Name: the customizable name on the Outreach nodeResponse Status Code: the callout status 200: Callout succeeded0, 300, 400: Callout failedBlank: Pending Target Object: the object acted uponCallout History: displays all responses from the callouts (includes success and failures)Callout Duration in milliseconds: Callout end time - Callout start timeTotal Callout Duration in milliseconds: the entire length of time it took to process the requestFailure Reasons: reason(s) the callout failed Token is not validPartner not authorizedObject has been deletedObject has been mergedRetry attempt exceededLog length hit The “LD Read Only” Permission Set must be added to any users who would like to access this report. Notes: Rate Limits are 5,000 requests per user per hourOnly fields mapped in the “fields” section of the Outreach Plugin Settings will be pushed to Salesforce.LeanData will wait for up to 30 seconds to accumulate callouts before running a batch to perform Outreach Actions. LeanData will track the readiness of the callout before initiating the callout batch. Troubleshooting Below is a list of common errors and reasons an action may be in a pending / error state: Error DescriptionTroubleshooting StepsUnauthorized OAuth Scope for Outreach 1. Determine the user authorized for the LeanData Outreach integration under Admin > Partner Apps > Outreach 2. Ensure their scope is set to sequences.all, sequenceStates.all, mailboxes.all, prospects.all Unauthorized Request in Outreach 1. Determine the user authorized for the LeanData Outreach integration under Admin > Partner Apps > Outreach 2. In Outreach, navigate to User Admin > Profiles > Profile of User who authorized integration and check that these options are enabled - Administration: Permit Plugins - Record Visibility: Permit all record visibility for Prospects, Accounts - Sequences: Permit Create, Edit, Enable Sequences, Sharing Sequences - Mailboxes: Send from all records Resource Not Found in Outreach 1. Check the Outreach node in FlowBuilder for the mailbox settings. - If it's configured to Salesforce record owner, check the record owner name and whether they have a user record in Outreach 2. Check the Salesforce record in question for an Outreach ID populated (If not, that means the record was not created in Outreach or did not sync back to Salesforce). 3. Ensure nodes are correctly placed. See the Node Placement steps for more details. For Outreach ID: 1. Check the Salesforce Plugin Settings in Outreach 2. Ensure the Outreach (Internal Id) is mapped to a field in Salesforce and that "Updates Out" is enabled for all objects (User and Lead/Contact). 3. Check the Outreach Settings for Polling Frequency for all objects. 4. Check the LeanData Partner App settings for Outreach and the same field mapping is configured. If it still fails, contact support@outreach.io for assistance on the Sync. General Outreach Validation Error1. Details on custom validation errors set up in your organization that block additions to Sequences will be listed on the error message. Take action in accordance with your organization policies. Prospect already targeted in Outreach 1. The Sequence Ruleset Safety Settings blocked the addition of this Prospect to the Sequence. Customers need to update the "Prospect can be added to this sequence" field. * Note that any Sequence on this Ruleset will also be affected so this change should not be taken lightly. Prospect still active in Sequence 1. The Sequence Ruleset Safety Settings blocked the addition of this Prospect to the Sequence. Customers need to update the "Prospect can be added to this sequence" field. * Note that any Sequence on this Ruleset will also be affected so this change should not be taken lightly. Prospect active in another Outreach sequence 1. The Sequence Ruleset Safety Settings blocked the addition of this Prospect to the Sequence. Customers need to update the "Should active prospects be exclusive to this sequence?" to the "Yes, but only for exclusive sequences" option on the Sequence the Prospect is already lined up in. * Note that any Sequence on this Ruleset will also be affected so this change should not be taken lightly. Prospect active in another exclusive sequence 1. The Sequence Ruleset Safety Settings blocked the addition of this Prospect to the Sequence. Customers need to update the "Should active prospects be exclusive to this sequence?" to "Yes" on the Sequence the Prospect is already lined up in. * Note that any Sequence on this Ruleset will also be affected so this change should not be taken lightly. Prospect is locked in Outreach1. Unlock the Prospect if it was mistakenly locked. Ignore otherwise.Prospect missing email in Outreach1. Find the Prospect in Outreach and add an email.Prospect opted out1. If you believe this is a mistaken "Opt Out," navigate to the Outreach Record, click the arrow next to Edit and select "Revert Opt Out"Outreach User is not the owner1. Set Sequence Org Sharing Settings to Public.Outreach User is locked1. If the User should be unlocked, navigate to Outreach's User Admin > Users > Select the User > Click the ... button > Unlock.Outreach Mailbox does not have send enabled 1. This error will only happen when the Mailbox Settings for the Outreach integration node is set to "Salesforce Record Owner" and the user does not have send enabled on the Mailbox. Find the record owner's name and have them set up the Mailbox as outlined in the Documentation. "In Outreach, click your initials in the bottom left corner > Mailboxes > Add > Select the Email Provider > Fill out details. Toggle on “Enable sending messages from this mailbox.” Outreach Mailbox has invalid send credentials1. The Outreach User's default mailbox has invalid send credentials. Determine the user and have them "disconnect" then reconnect their email account under Outreach Mailboxes (User Admin > Mailboxes).Outreach Rate Limit Exceeded Failed due to Outreach API usage limits (fixed limit of 5,000 requests per one-hour period). LeanData will retry the request after {X-RateLimit-Reset}. 1. Change the time interval in both Outreach and LeanData settings to a higher value so that less calls are made each hour. * Note that this means it will take more time to sync records between Salesforce and Outreach and to add Prospects to Sequences from LeanData. Scheduled Outreach Maintenance Failed due to Outreach maintenance. LeanData will retry the request after {Retry-After}. 1. No action needed. LeanData will retry the action on the date / time designated. Appendix FAQ For a list of frequently asked questions, please see here. Please email integrations@leandatainc.com if you have any requests or feedback. Definitions Sequence A set of scheduled and potentially automated sales activities in OutreachSequence overview written by Outreach can be found here Sequence Safety Rulesets Sequence Exclusivity: Determines whether a Prospect can be in other non-exclusive Sequences or other Sequences while in the current SequenceProspect Additions to Sequences: Determines the number of times a Prospect can be added to a Sequence Sequence Safety Rulesets Overview can be found here. Sequence Exclusivity Settings can be found hereFound under Settings > System Config > Rulesets Prospects The Outreach equivalent of Leads or Contacts in Salesforce Prospect Stages These are 1:1 with Salesforce Stages. Outreach can automatically set Prospect Stages based off of Sequence actionsThe Prospect Stage Overview can be found here Prospect Sequence State: The Prospect’s state in a Sequence. Definitions of each Sequence State can be found here.
