Content:

• Overview and Key Notes
• Configure Your Unbounce Form
  • • Add a Hidden Field to Capture the Log ID
• Add the BookIt Script to Your Form Page
• Add the BookIt Script to Your Thank You Page
• Configure Your Trigger Node
  • • Set Your Trigger Node Name
    • Add Your Field Mappings
    • Configure the Rest of Your Routing Graph



Overview and Key Notes

This guide walks you through how to display a calendar as a pop-up on a thank you page, triggered after a user submits an Unbounce form and is redirected to that page.



Configuring Your Unbounce Form

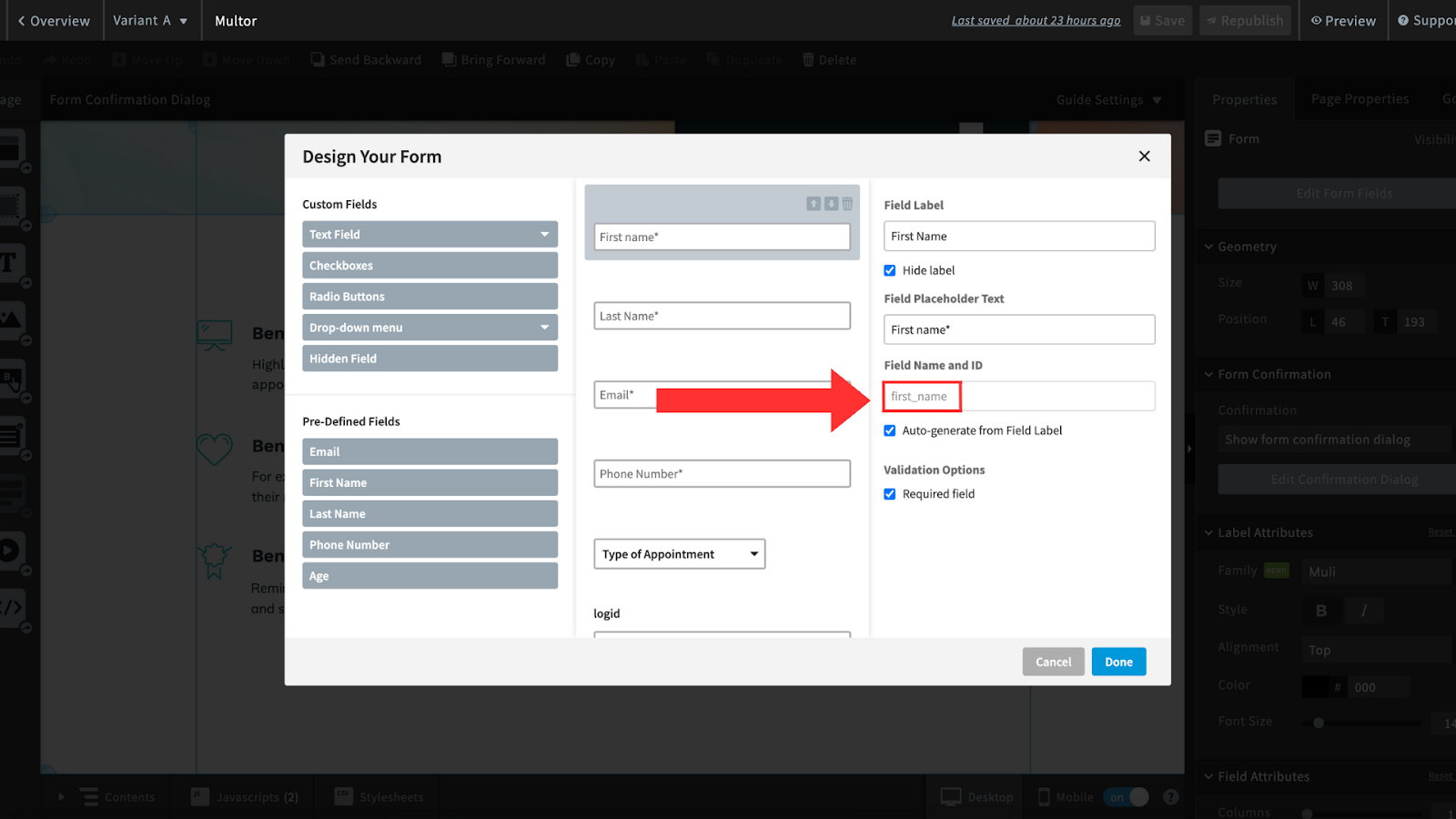

Add a Hidden Field to Capture the Log ID

First, make sure your Unbounce form includes a hidden field to store the BookIt Log ID. If you haven't already done this, follow our guide on Add a Hidden Field in Unbounce. This value will later be used to update the associated Lead or Contact in Salesforce.

Add the BookIt Script to Your Form Page

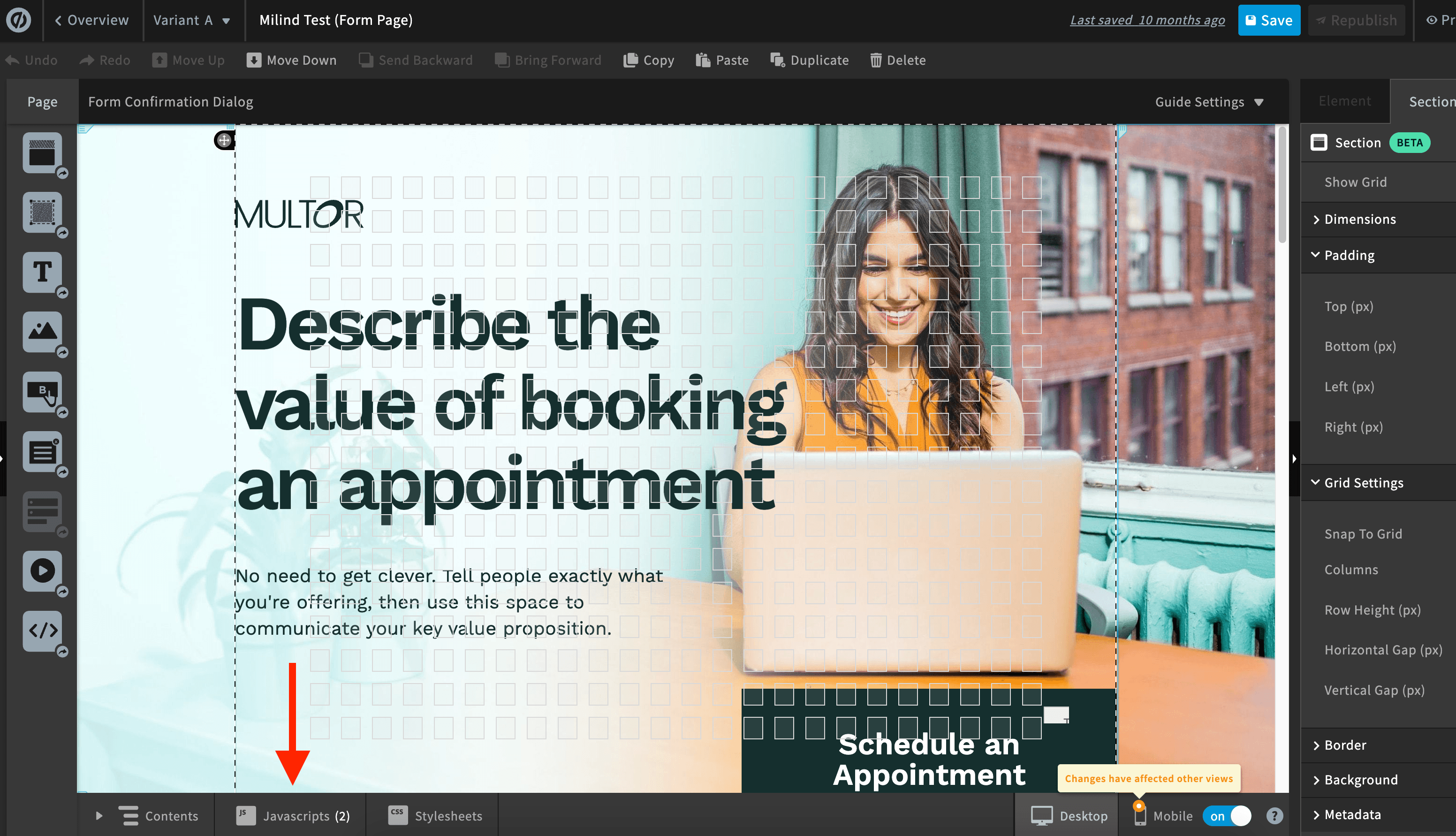

In the Unbounce form builder, navigate to the Javascripts and click +Add New JavaScript.

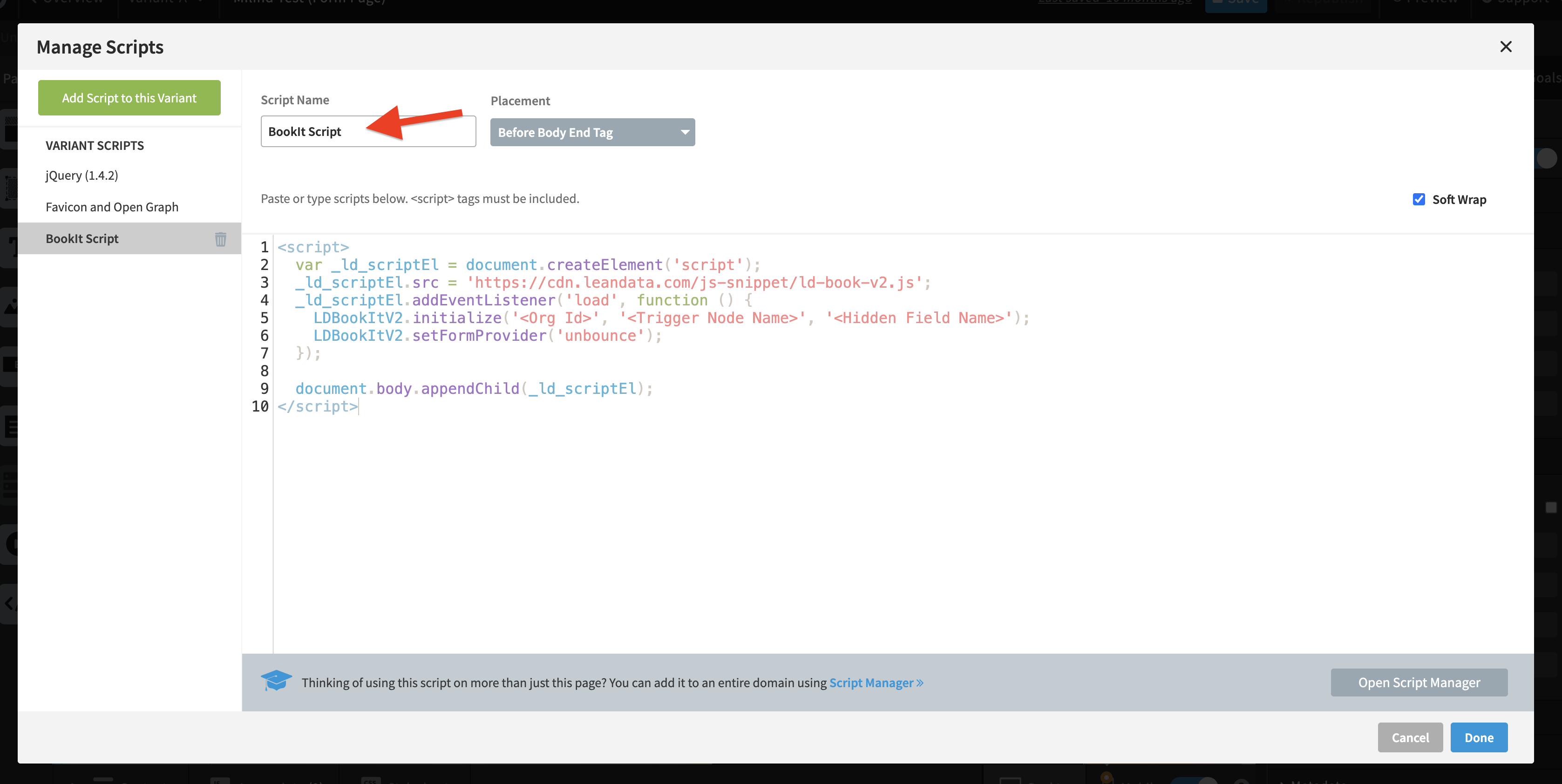

Update the Script Name to BookIt Script and paste the following code. You will need to update the placeholder values (highlighted in yellow) in the LDBookItV2.initialize() function.

Replace the placeholders with your values:

• <Org ID> — Your 18-digit Salesforce Org ID. This should match the org where your live BookIt router graph resides (or the sandbox you’re testing in).

• <Trigger Node Name> — The name of the trigger node in your BookIt router graph. Use something descriptive like "Demo Request". You’ll configure this in a later step.

• <Hidden Field Name>— The Field Name and ID of the hidden field you created

<script>
  var _ld_scriptEl = document.createElement('script');
  _ld_scriptEl.src = 'https://cdn.leandata.com/js-snippet/ld-book-v2.js';;
  _ld_scriptEl.addEventListener('load', function () {
    LDBookItV2.initialize('<Org Id>', '<Trigger Node Name>', '<Hidden Field Name>');
    LDBookItV2.setFormProvider('unbounce');
  });
  document.body.appendChild(_ld_scriptEl);
</script>



Add the BookIt Script to Your Thank You Page

First, make sure your form is configured to redirect to a thank you page on the same domain as the form page.

Add the following BookIt Script to that page. The script will load the LeanData BookIt library and trigger the calendar once the page loads.

Be sure to replace the highlighted placeholder values in the LDBookItV2.initialize() function:

• <Org ID> — Your 18-digit Salesforce Org ID. This should match the org where your live BookIt router graph resides (or the sandbox you’re testing in).

• <Trigger Node Name> — The name of the trigger node in your BookIt router graph. Use something descriptive like "Demo Request". You’ll configure this in a later step.

<script>
  var _ld_scriptEl = document.createElement('script');
  _ld_scriptEl.src = 'https://cdn.leandata.com/js-snippet/ld-book-v2.js';;
  _ld_scriptEl.addEventListener('load', function () {
    LDBookItV2.initialize('<Org Id>', '<Trigger Node Name>', true);
    LDBookItV2.submit();
  });
  document.body.appendChild(_ld_scriptEl);
</script>



Configure Your Trigger Node

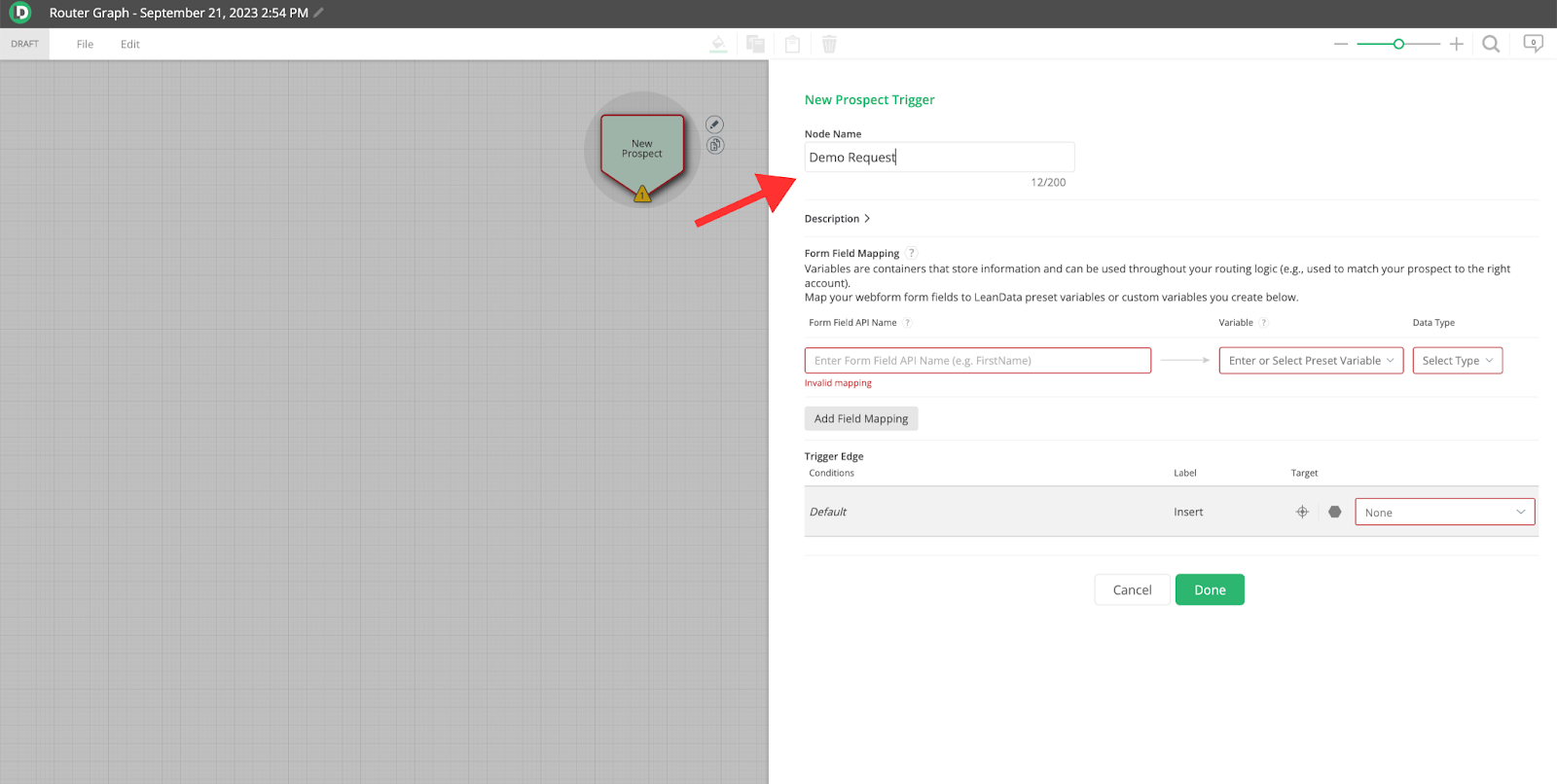

Set Your Trigger Node Name

In your LeanData BookIt for Forms routing graph:

• Double-click on the Trigger Node to open the editor

• Update the Node Name to match the <Trigger Node Name> you defined earlier in your embed script.

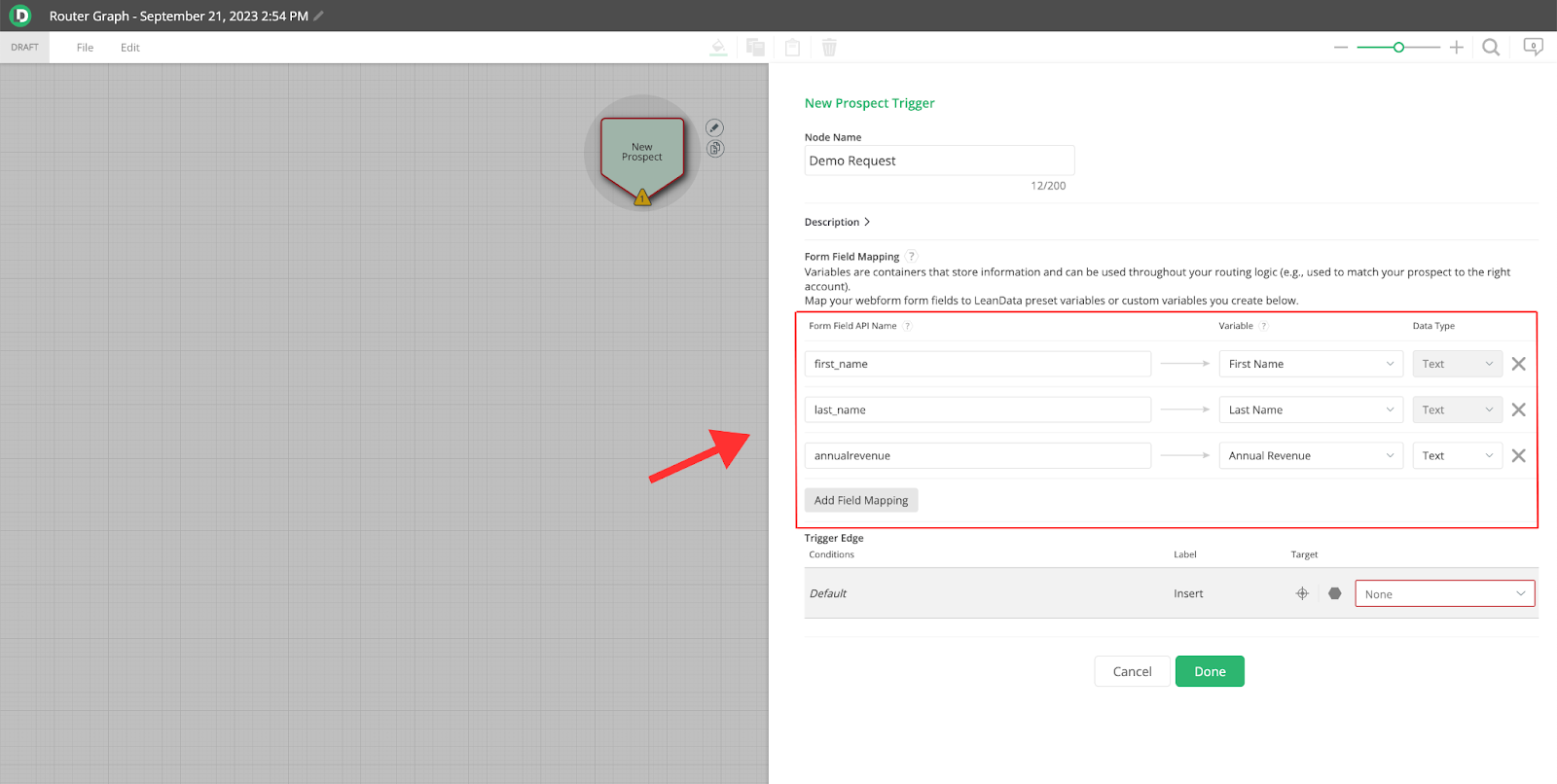

Add Your Field Mappings

You can define field mappings directly in the Trigger Node. This allows you to pass values from your form into variables that can be used in your graph’s routing logic.



When specifying Form Field API Names, you'll use the Field Name and ID values for each field on your form.

When adding field mappings in your Trigger Node:

• If available, select from the list of default variable options.

• Otherwise, define your own variable name and specify its type (e.g., string, email, phone).



Configure the Rest of Your Routing Graph

Now that your trigger node and form field mappings are in place, you can continue building and customizing your routing logic.

Need help? Our LeanData Professional Services team is happy to assist with advanced configuration, best practices, or validation of your setup.
