Contents:

• Overview
• Customization
• Meeting Type
• Create Event
• Form Field Mapping
• Advanced Settings
• Summary



Overview

The Schedule Meeting with Explicit User Node gives you the ability to route the Prospect to a specific User in your Salesforce Organization.





Example: Vince is the LeanData Admin for OpenLane Software. He is currently building their BookIt Graph. For incoming new Prospects that do not match with a Lead or Account, the Graph routes them to a default user to schedule the meeting.



Customization

You have a number of options to configure the node.

• Node Name
• Description
• Schedule Meeting with
• Additional Attendees
• Meeting Type
• Create Event
• Form Field Mapping
• Advanced Settings





Node Name

By default, the Node Name is set to Schedule with Explicit User. You can change this label to anything you need. We strongly recommend giving this node a meaningful name such as the subject of the assignment. This will help others understand the purpose of the node.



Description
This field is not required but we recommend adding a description to document any customizations made to the node. If someone else needs to take over the management of the flow, the description will help them to understand the goal of the customizations.



Schedule Meeting with

The Schedule Meeting Section lets you select who the meeting will be scheduled with. You can choose from a list of users in your Salesforce Organization or a user found in a field on the routed Prospect.





Additional Attendees

The Additional Attendees Section lets you add additional attendees from your Salesforce Organization to the scheduled Meeting to create a group meeting. You can add specific users in your organization or a select user from a routed record such as a Lead or Matched Account.



You can add multiple users to a scheduled meeting and mark each as Optional to respect their schedules.



Meeting Type

The Meeting Type is a pull-down menu for you to pick the type of meeting being scheduled. This pull-down is synced to your Meeting Types.





Create Event

The Create Event settings will allow you to create a Salesforce event upon the meeting being booked successfully.





Related To

Use the Related To field to relate the Salesforce meeting to the Routed Record or a matched object like an Account.





Assigned To

Use the Assigned to setting to select the person in Salesforce that the Event is assigned to.





Event Subject

Use the Event Subject to create a subject for the Salesforce Event. You can add text or use Insert to copy from a variable on the Prospect.





Additional Event Fields

You can use the Additional Event Fields to add information to an Event Field when the Event is created. You can select Value or Variable.

Value will add any text you enter into a text field. You will also see a list to pick from depending on the field. In our example below, we picked the Reminder field. As a result the Value field is a picklist of times to set for the reminder. If it were a text field you will see a blank text box to fill in.

The Variable field will give you the ability to copy information from a Variable on the Prospect and add it to one of the Salesforce Event fields.





Form Field Mapping

The Form Field Mapping settings allow you to map any other fields you collect from your webform to send back to your Marketing automation. You can enter in a value or pick a variable from the list of prospect variables and map it to the form field API name.

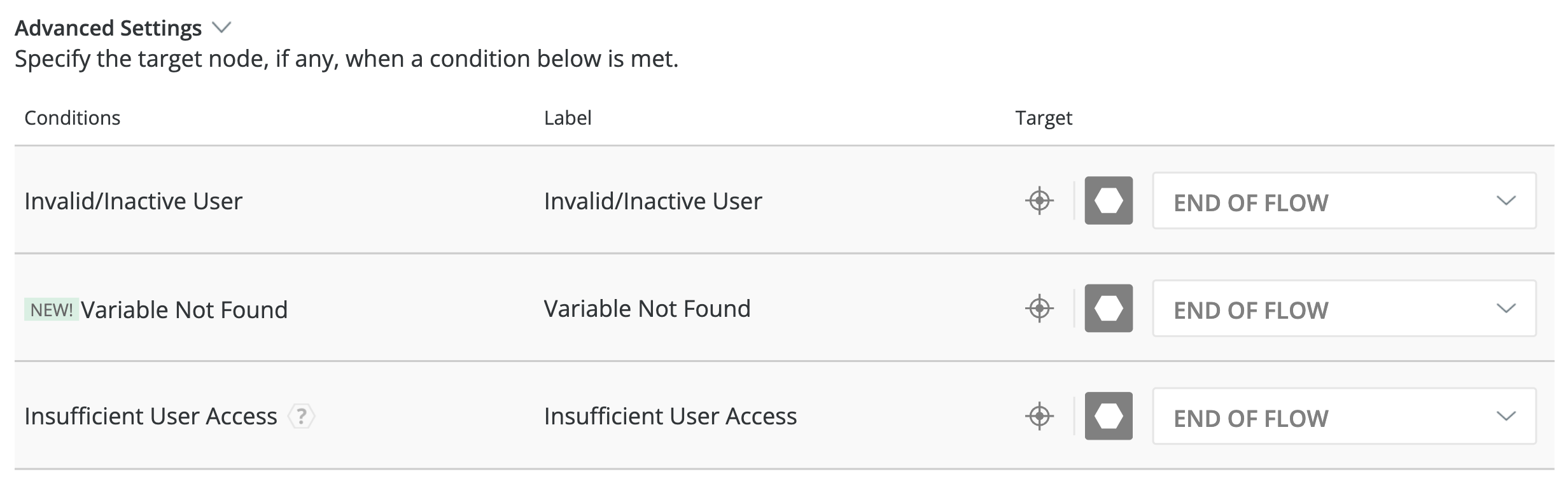

Advanced Settings

The Advanced Settings section gives you fallback options for the routed records and the ability to send the record to the next node of the graph as needed.

• Invalid/Inactive User: This is a fallback condition in the event that the selected User is not active or invalid at the time of the routing. By default this will be set to End of Flow.
• Variable Not Found: This is a fallback condition in the event that the selected Additional Attendee from a variable is invalid at time of routing.
• Insufficient User Access: LeanData will follow this edge if unable to schedule with the selected user (e.g., user not properly authorized for Booklt and / or has no product access).



Working with Edges

You can Connect nodes in one of several ways:

1. Open a node and select the Target through the dropdown next to the condition or outcome you wish to assign. Use the search functionality to narrow the scope of the results. If you want Lead processing to stop at your selected node, simply select End of Flow.





Alternatively you can click the Stop Sign icon to set a particular edge to End of Flow, or click the crosshairs icon to assign that edge visually on the main flowchart graph view by clicking the node to which you would like that edge to proceed.





2. If you are already in the main flowchart graph view, you can click on the yellow triangle and drag the edge you wish to direct to the next node to which you would like that edge to proceed.



Summary

The Schedule with Duplicate Lead Node will allow you to schedule a meeting This node allows you to control how you assign the owner as well as tools for sending notifications on success or failure of the assignment. There are also fallback conditions to manage if the User is invalid or inactive.
