Overview

This guide will show you how to set up a Relative Date in the routing graph.



Operators

When comparing dates or date/times, you can use the following operators:

Operator	Description
On / At	On a specific date / at a specific time
Not on / Not	The date or date/Time is not the same as the field value
After	After the date or date/Time
On or after / At or after	On or after the date or date/time
Before	Before the date or date/time
On or before / At or before	On or before a date / at or before a date/time
Is Null	The date or date/time field is blank
Not Null	The date or date/time field is not blank





Common Date/Time Comparisons

Checking if a Date/Time Field Falls Within the Past X Days (Including Today)

Replace X with the number of days needed for your specific case.

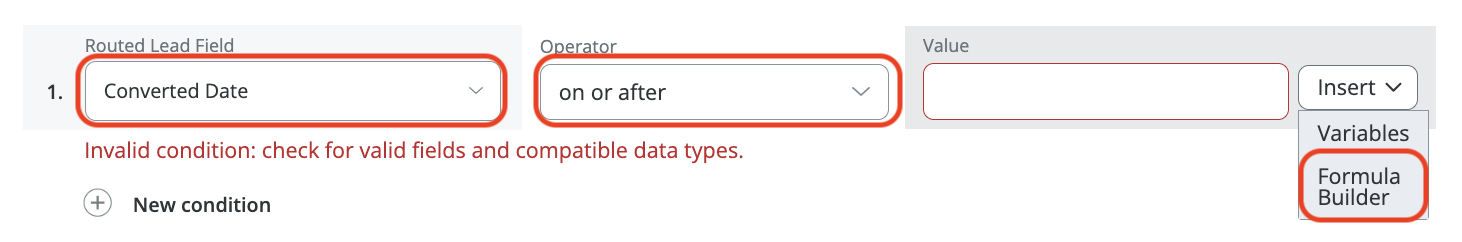

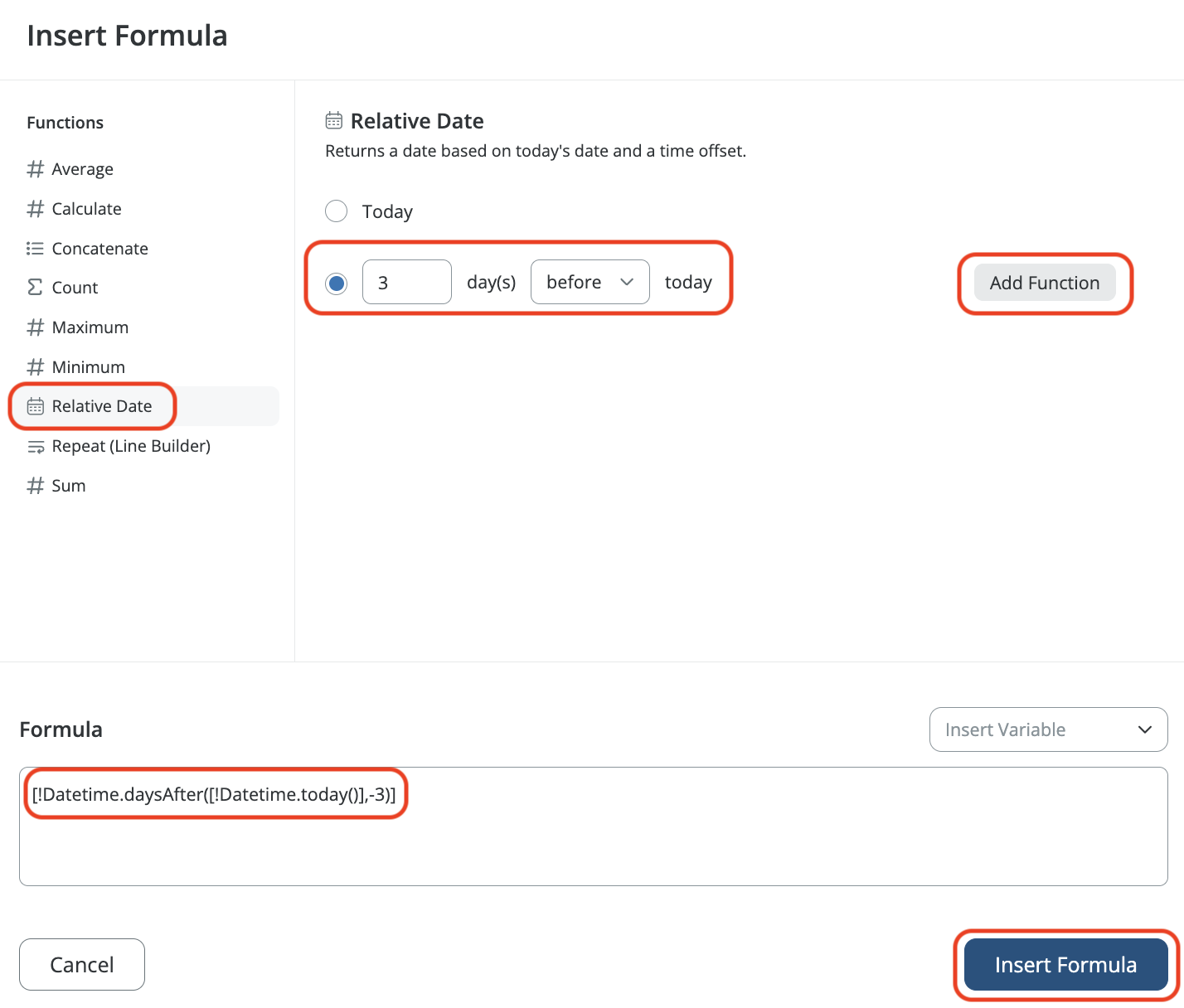

• Select the date/time field and operator, then click Insert > Relative date
• Set the operator to "On or After"

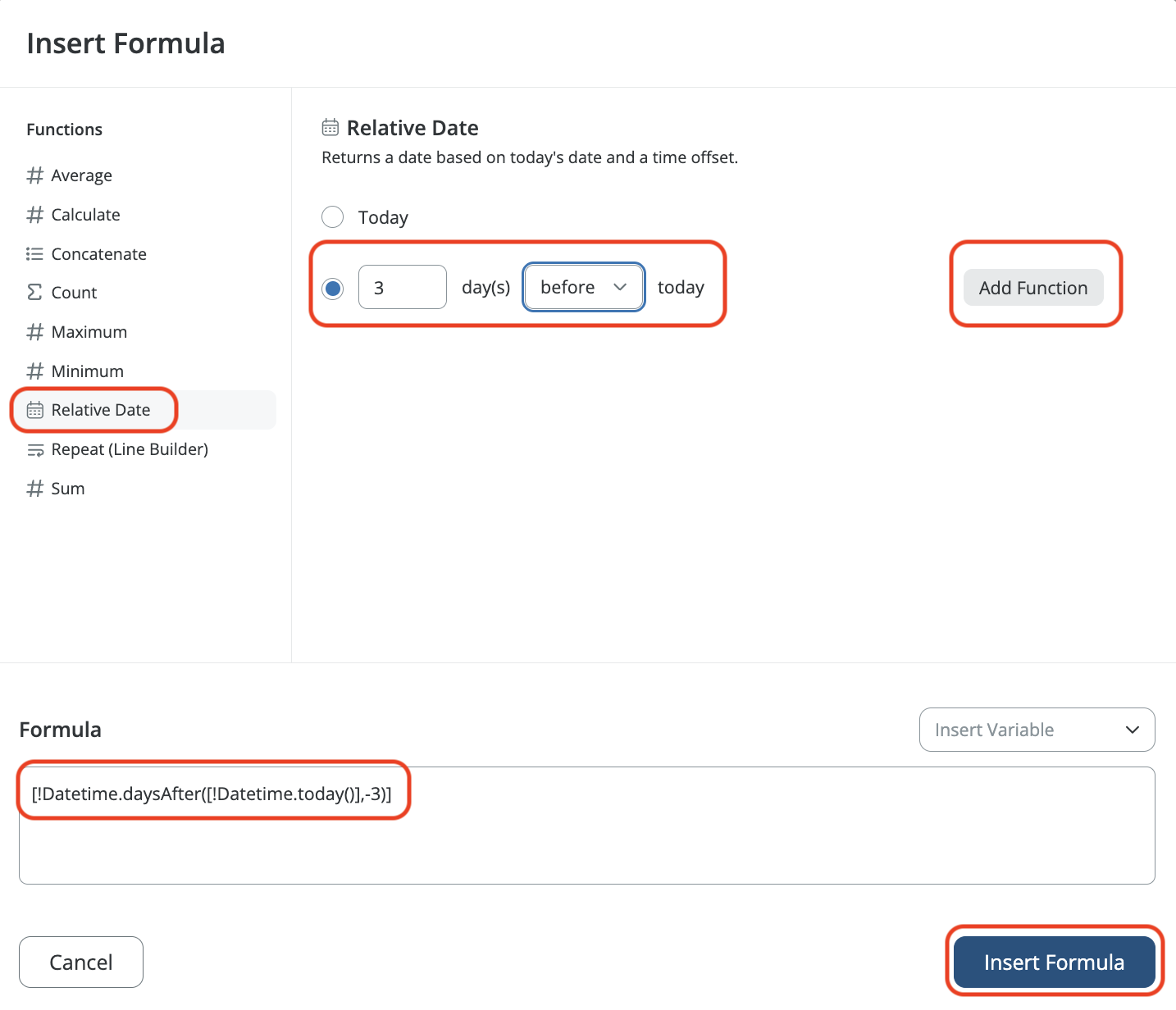

• Enter the number of days and select "Before Today" to check data from the last X days
• Click "Add Condition" to add a second condition

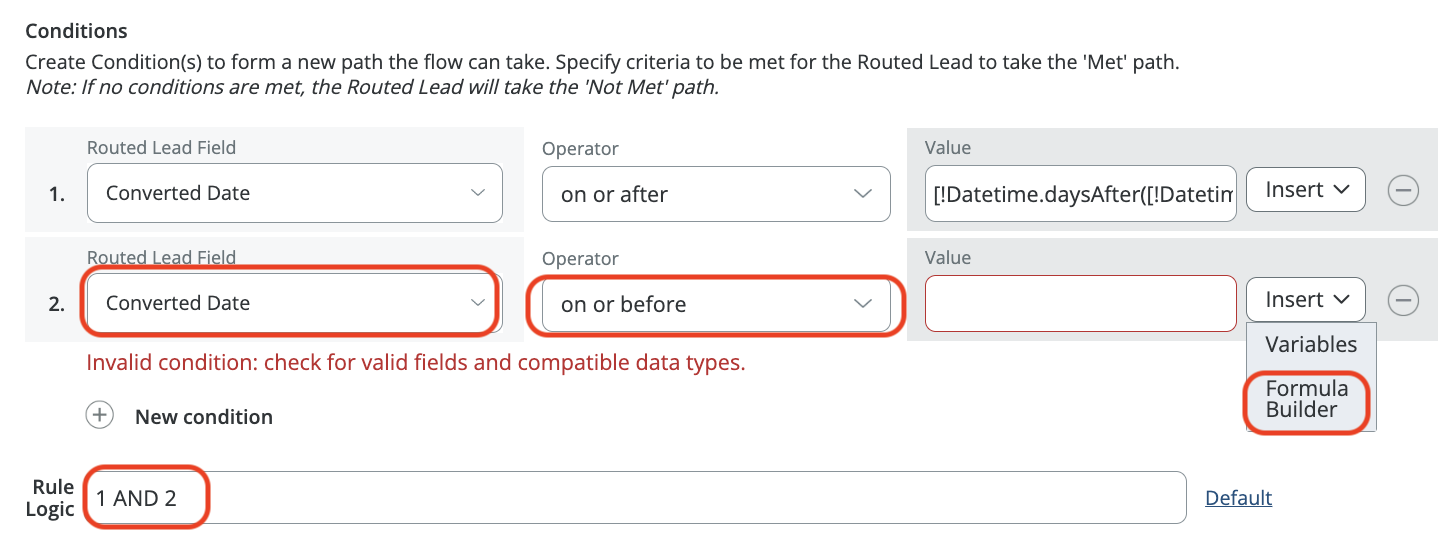

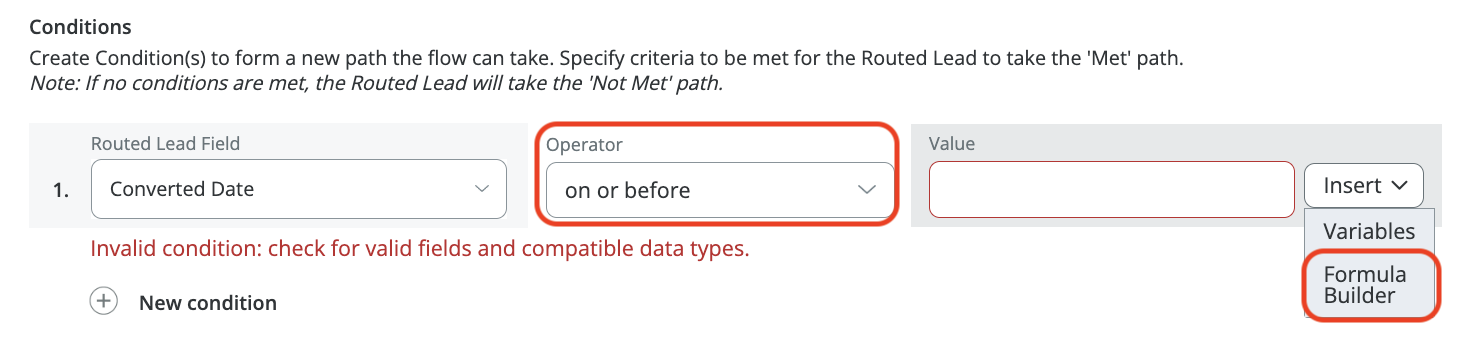

• Select the same date/time field and set the operator to "On or Before"

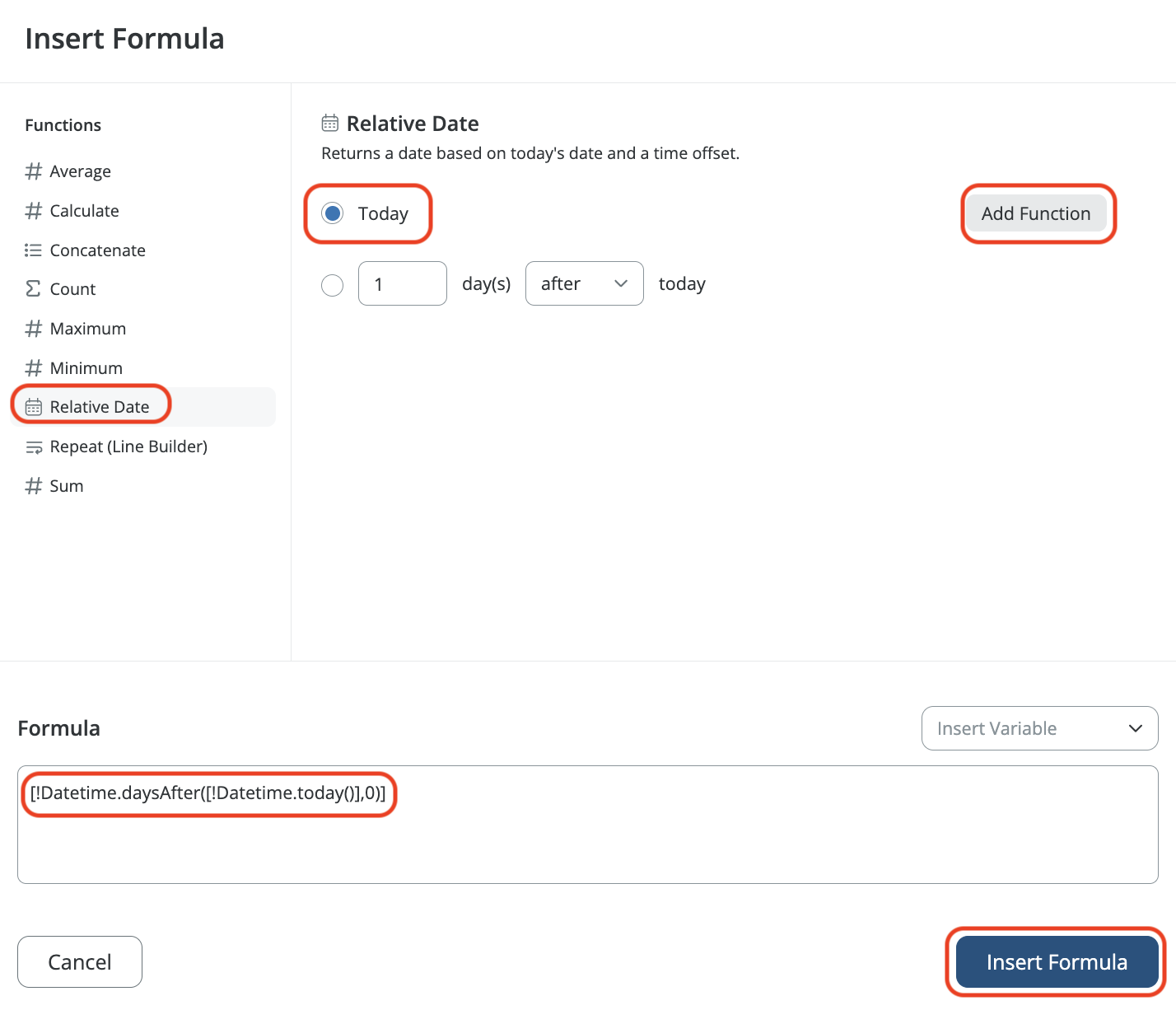

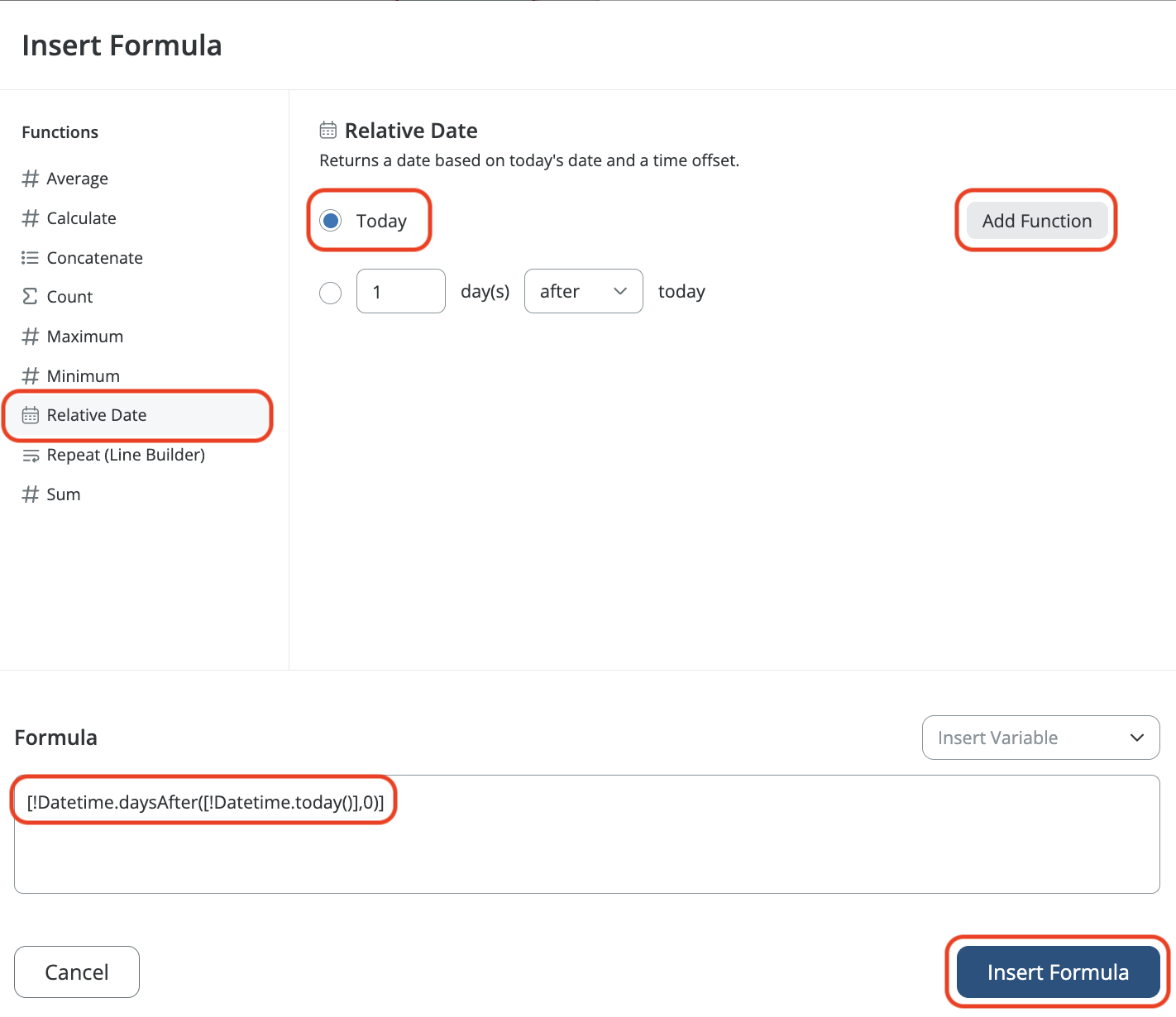

• Set the relative date to "Today"

Example: checking if the value is within the last 3 days

1. (Date on or after [!Datetime.daysAfter([!Datetime.today()],-3)])
2. (Date on or before Today)
Rule Logic 1 AND 2



Checking Whether a Date/Time Field Falls Within the Next X Days (Including Today)

Replace X with the number of days needed for your use case.

• Select the date/time field and operator, then click Insert > Relative date
• Set the operator to "On or before"

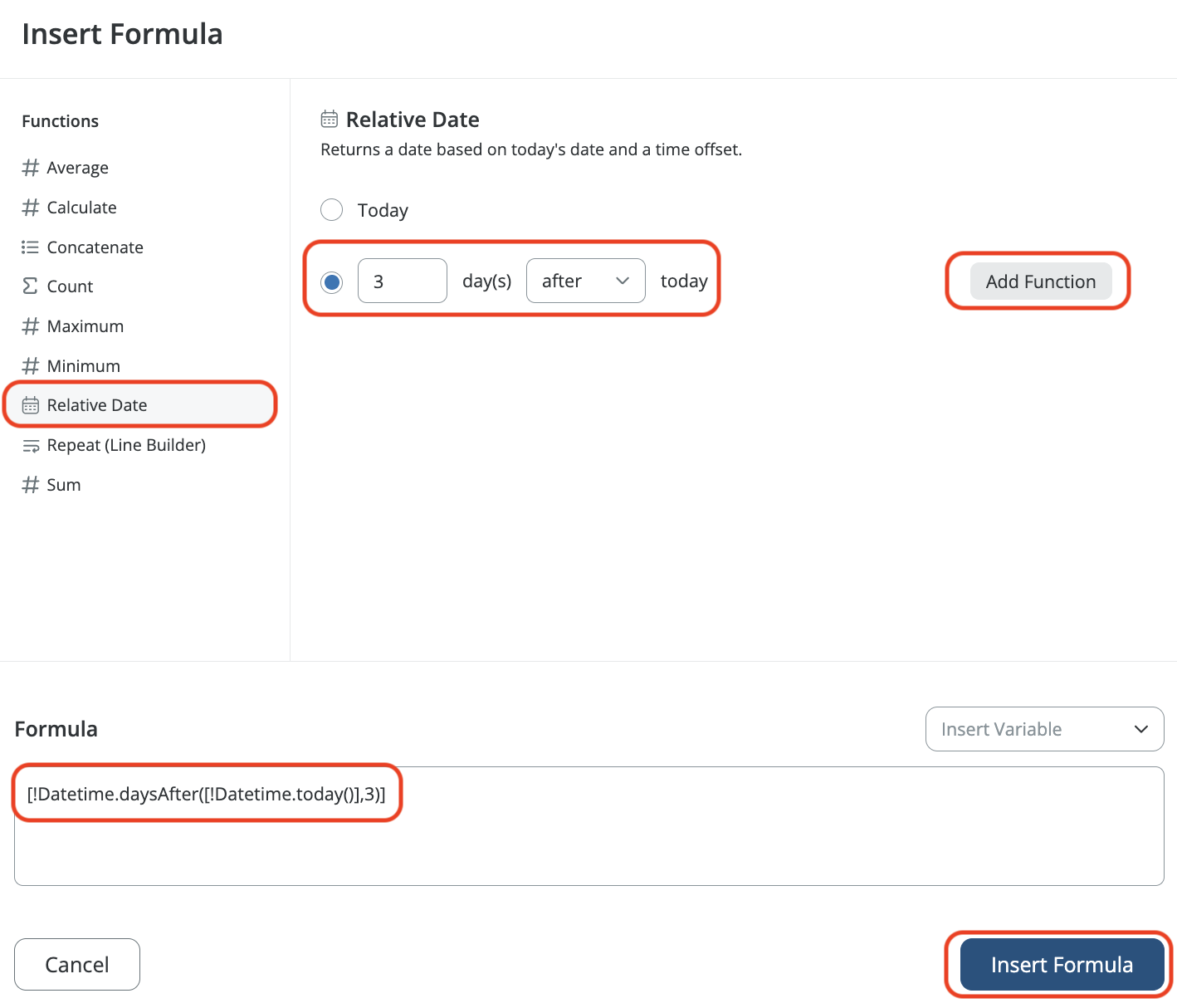

• Enter the number of days and select "After Today"
• Click "Add Condition"

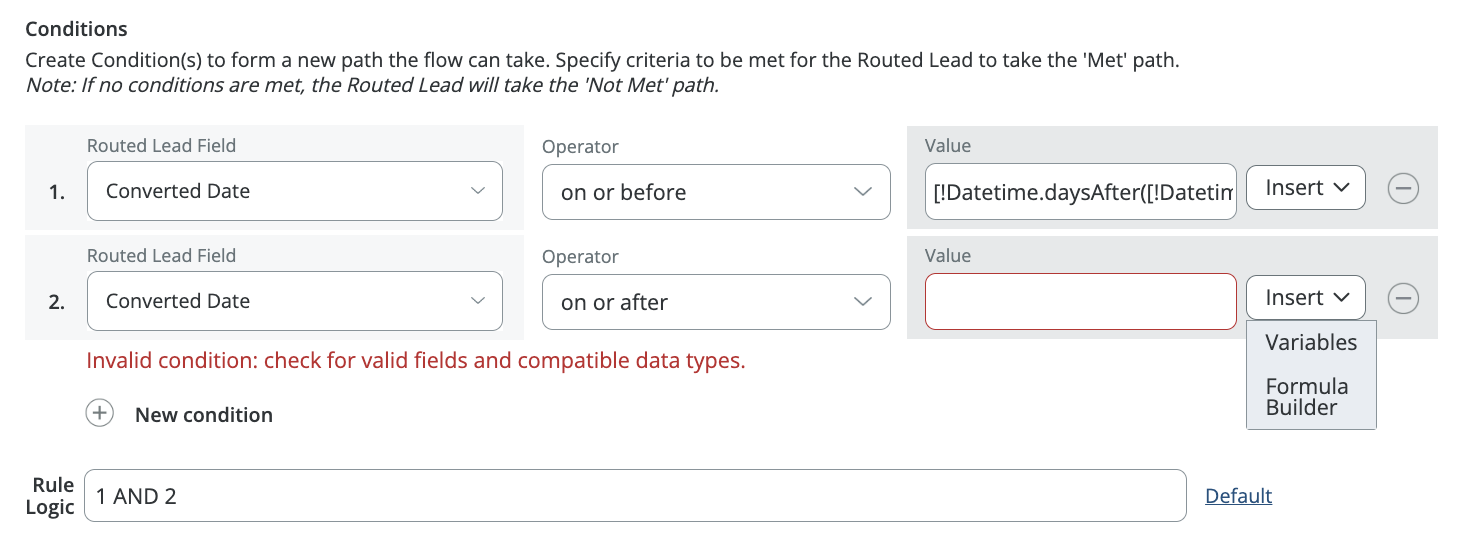

• Select the same date/time field and set the operator to "On or after"
• Set the relative date to "Today"

Example: checking if the value is within the next 3 days

1. (Date on or before [!Datetime.daysAfter([!Datetime.today()],3)]
2. (Date on or after Today)
Rule Logic 1 AND 2



Checking if a Date/Time Field is X or More Days Before Today

Replace X with the number of days needed for your use case.

• Select the date/time field and operator, then click Insert > Relative date

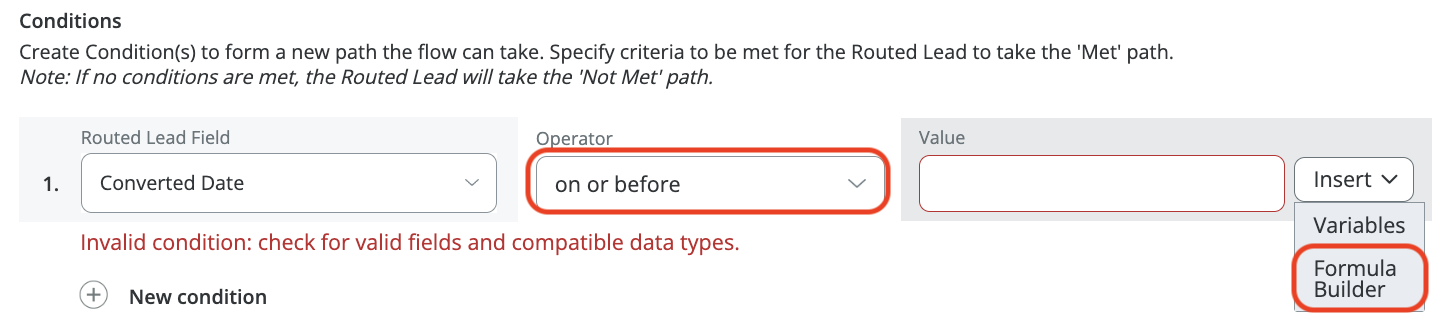

• Set the operator to "On or Before"
• Enter the number of days and select "Before Today" to check dates that are X or more days in the past

Example: checking if the value is 3 days or more before today



1. (Date on or before [!Datetime.daysAfter([!Datetime.today()],-3)])





Checking if a Date/Time Field Is X or More Days After Today

Replace the number of days in X as needed for your use case.

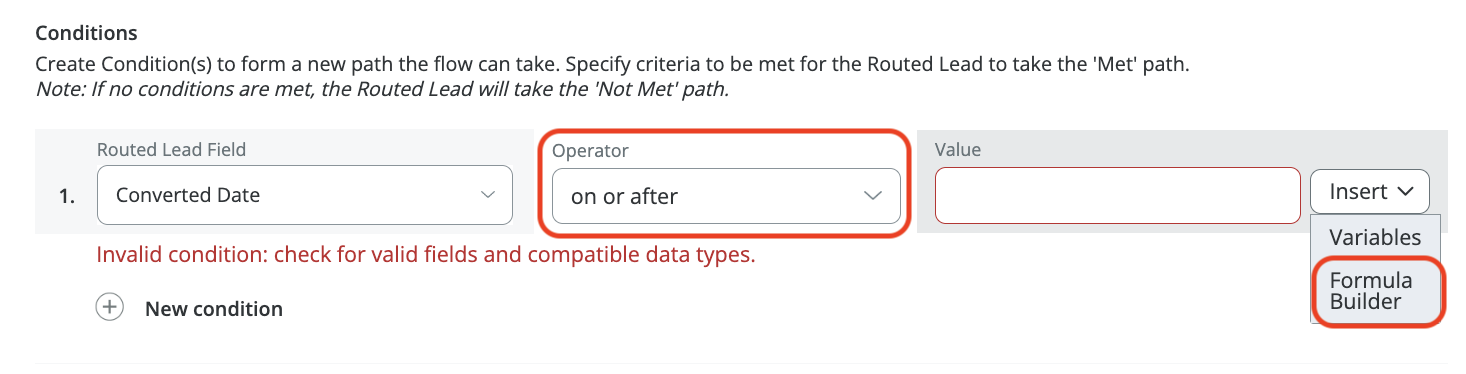

• Select the date/time field, operator, and click on Insert > Relative date
• The operator must be "On or After"

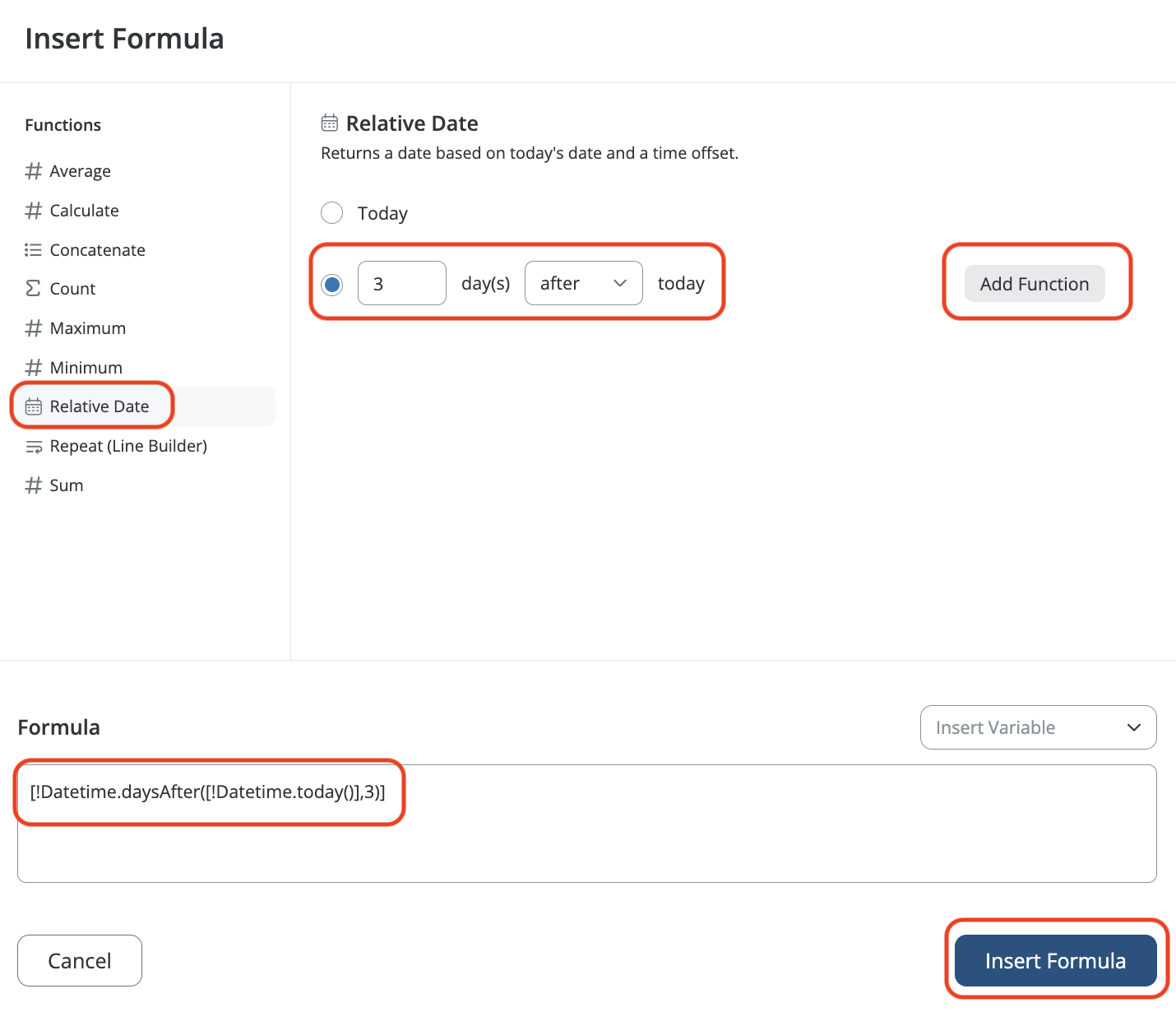

• Put the number of days, select "After" Today to check the data from the Last X number of days

Example: checking if the value is 3 days or more after today

1. (Date on or after [!Datetime.daysAfter([!Datetime.today()],3)])



For questions or additional assistance please contact LeanData Support.
